Robotic Design Sketches & Rough Notes

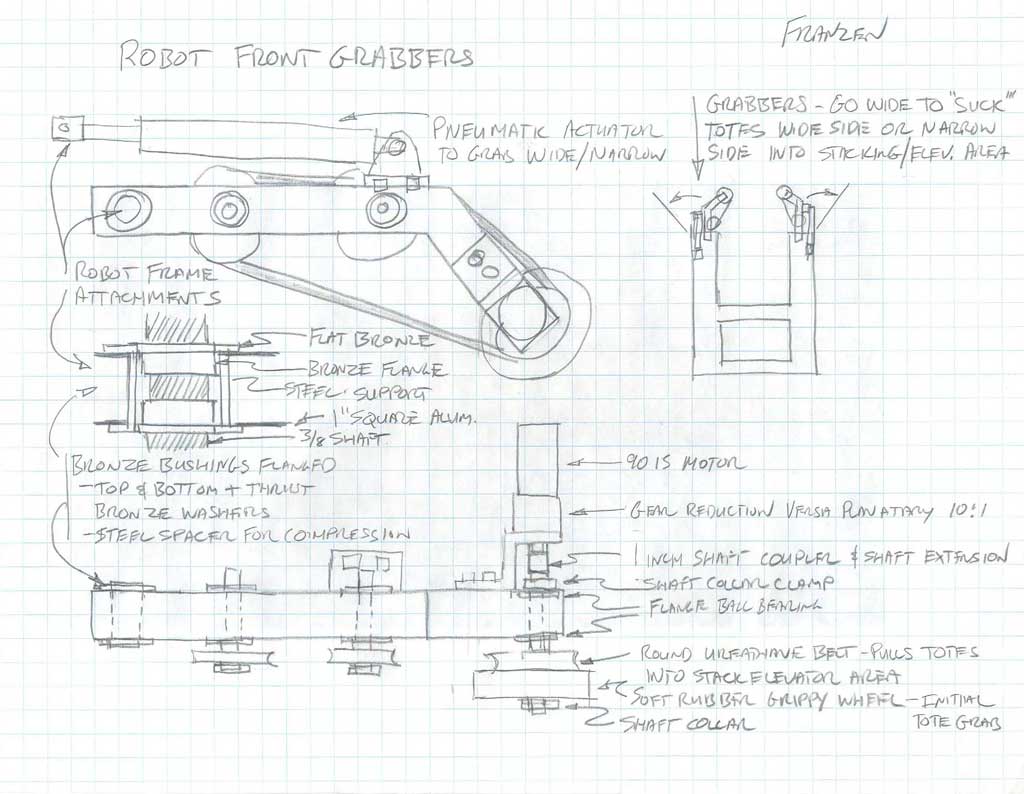

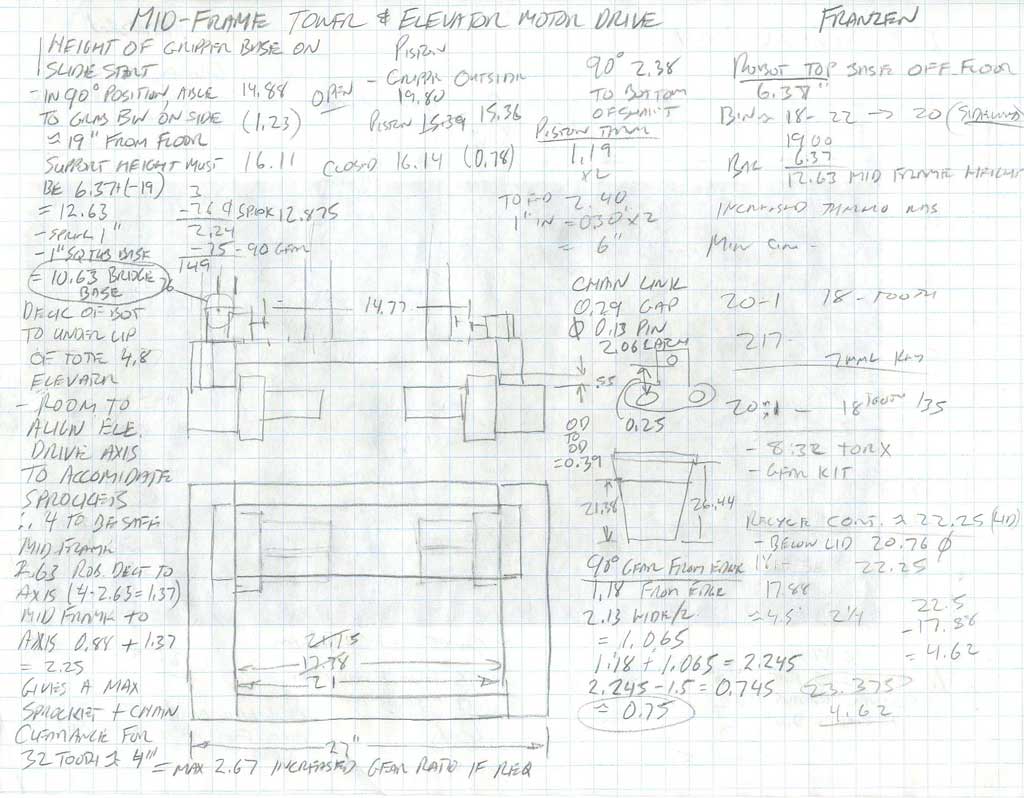

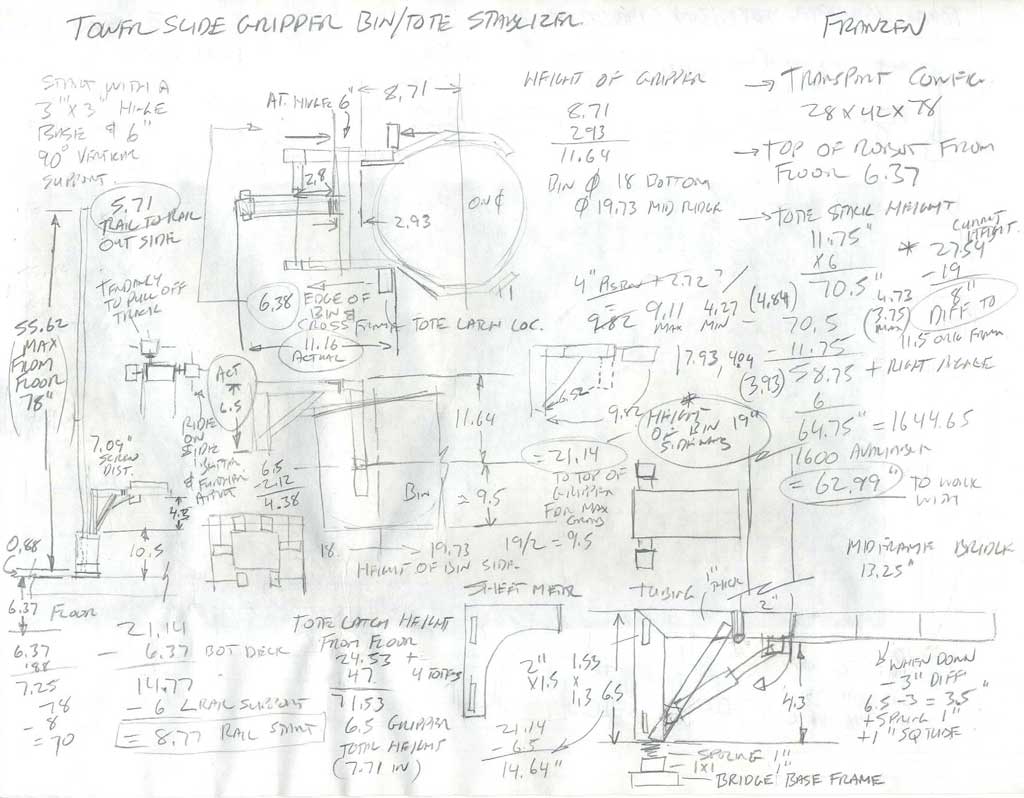

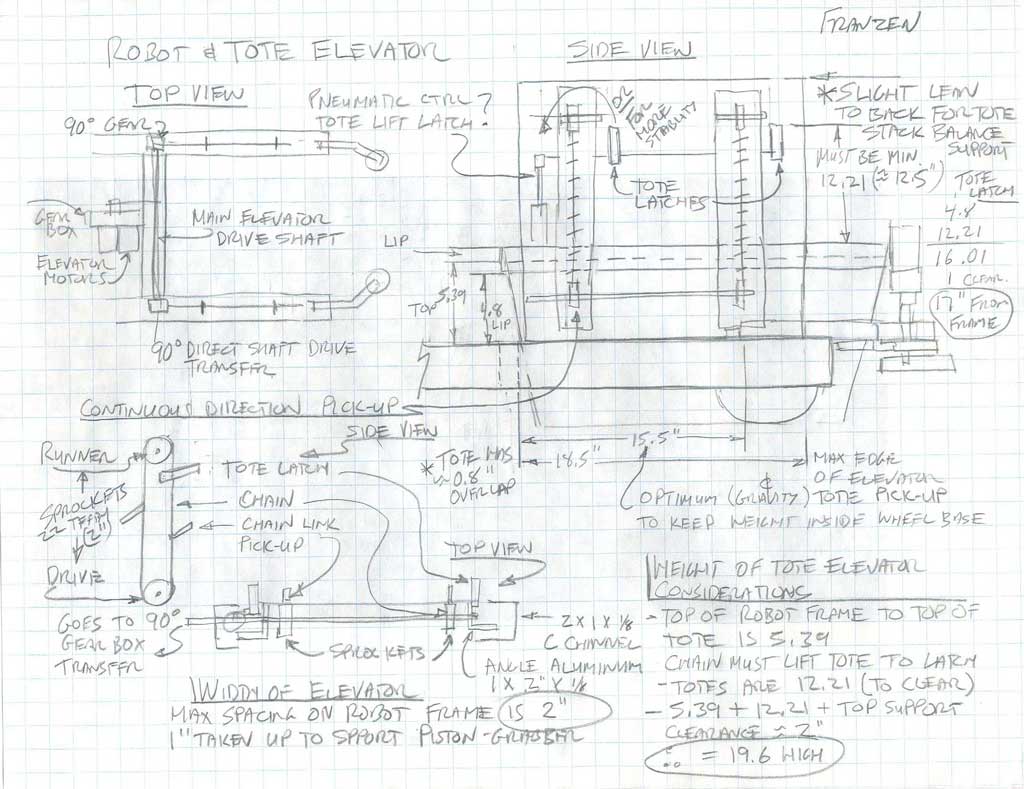

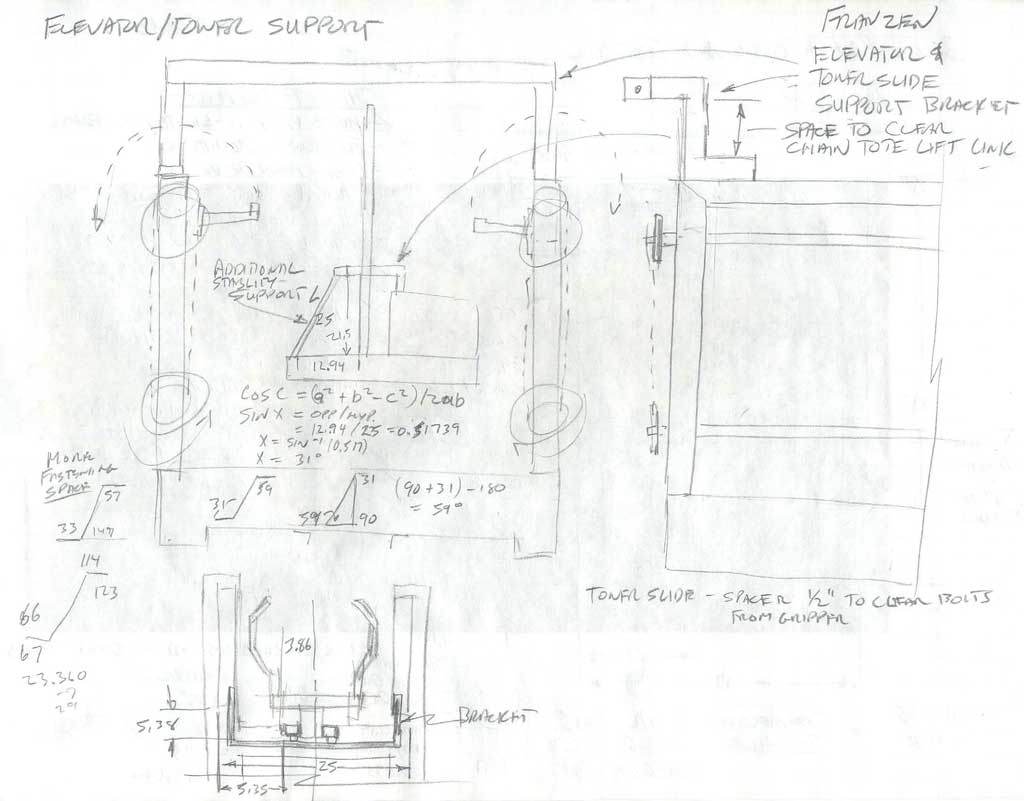

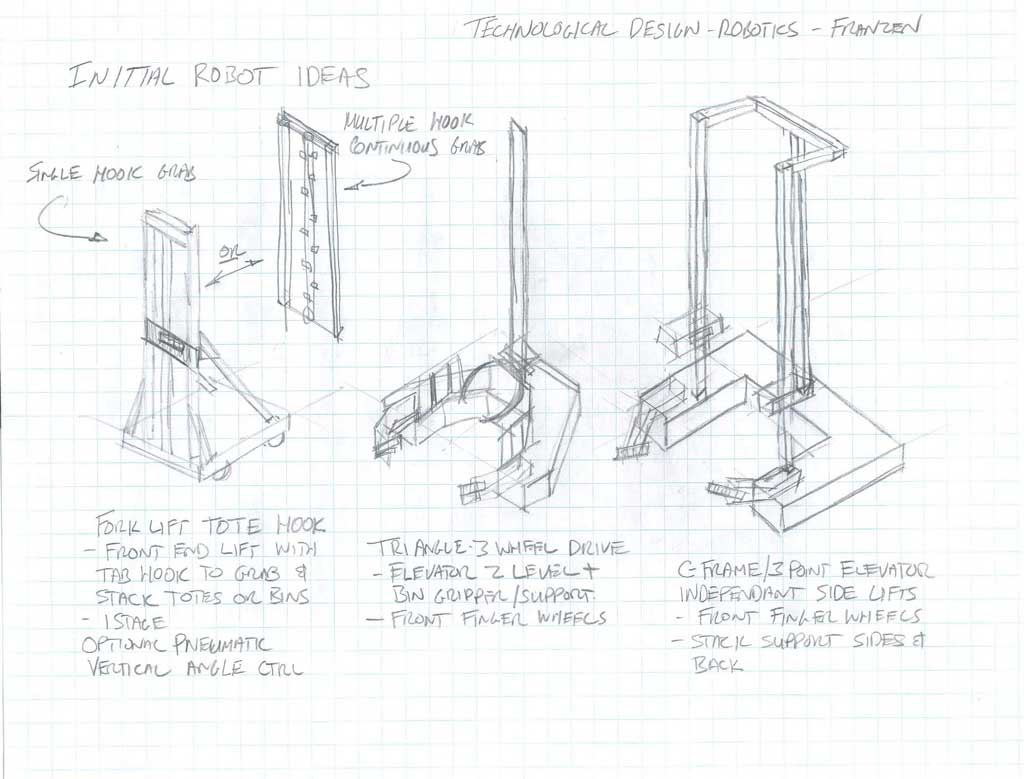

These sketches were done initially when starting with design of robot, and continued to be sketched and rough notes throughout the process of the build.

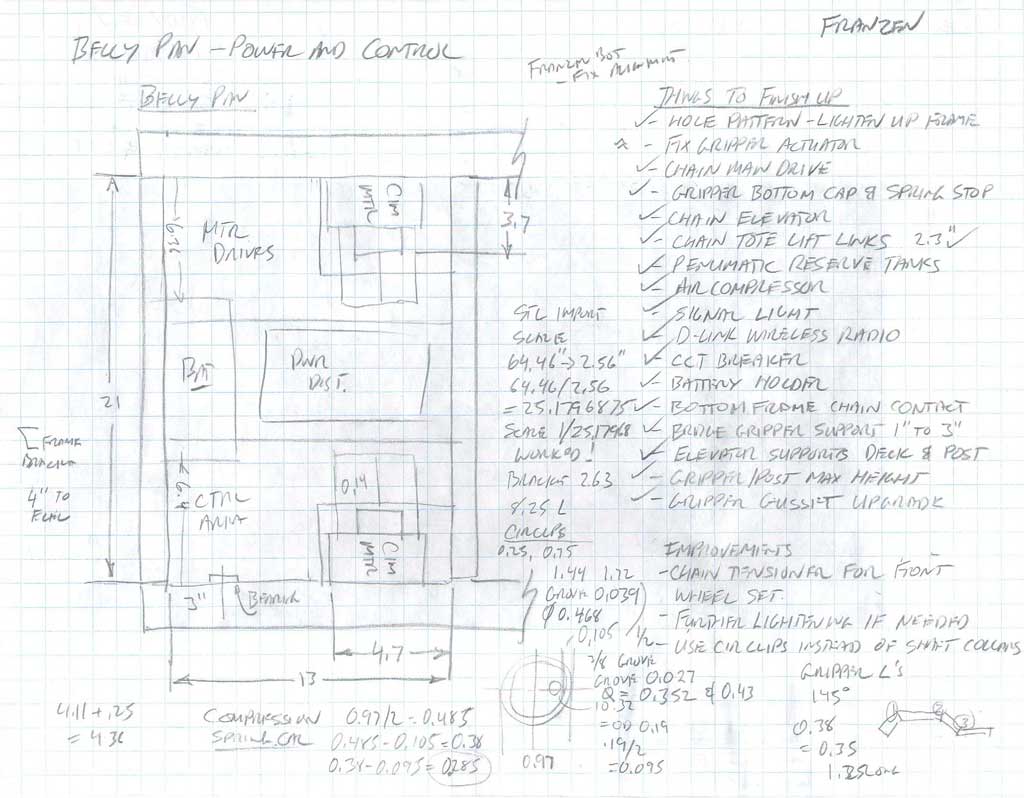

Robot Sketch 1

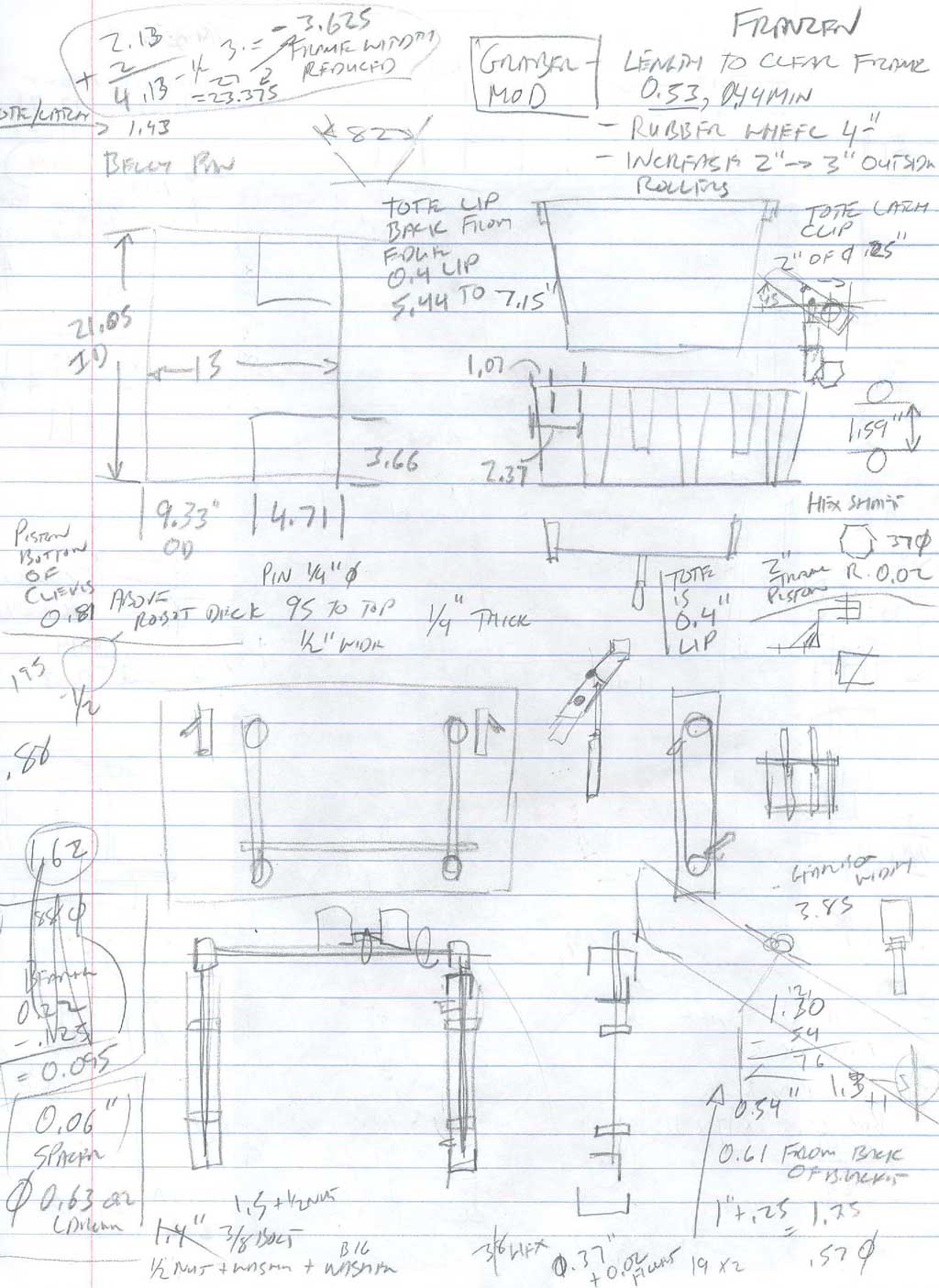

Robot Sketch 2

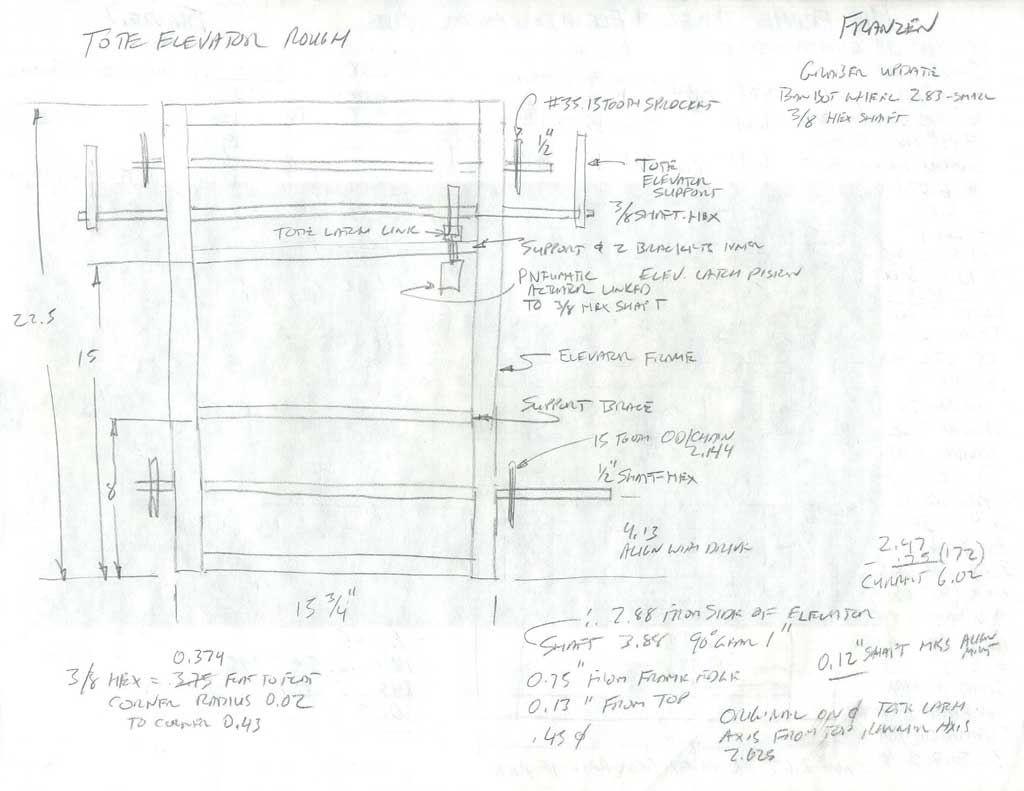

Robot Sketch 3

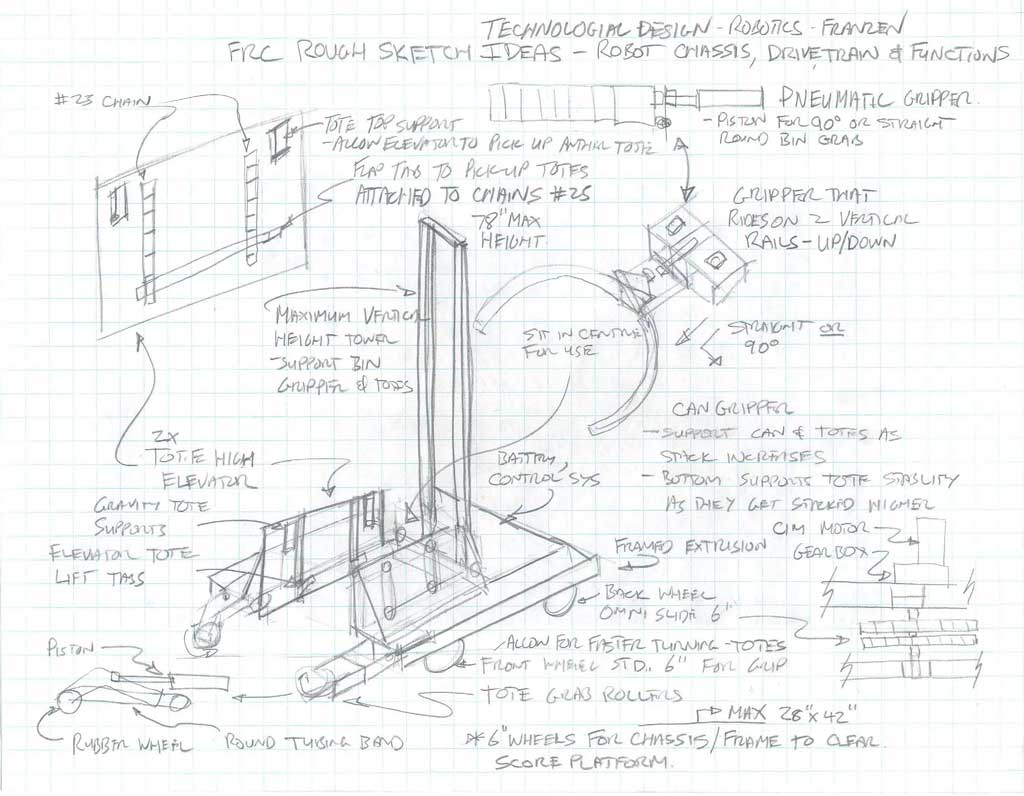

Robot Sketch 4

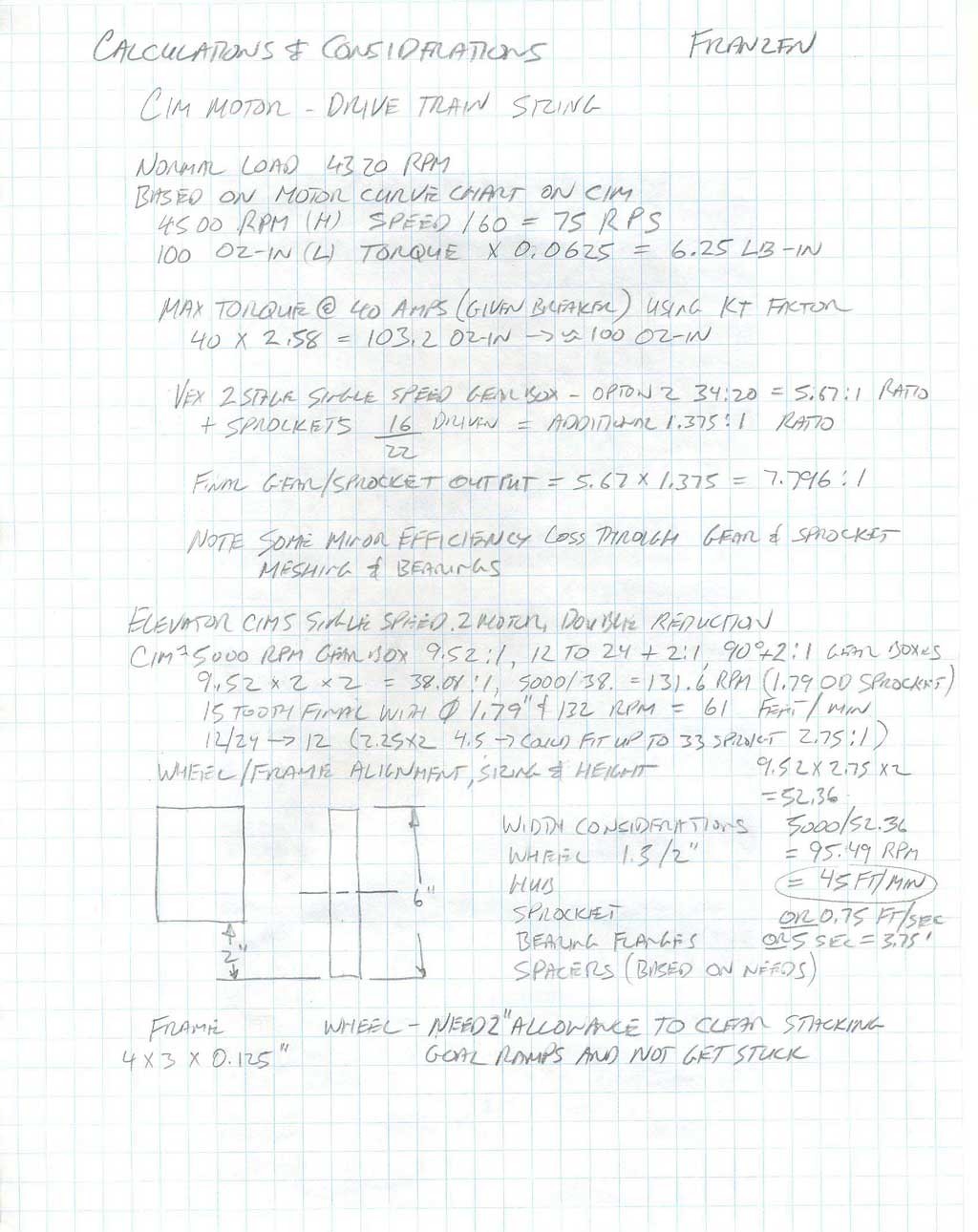

Robot Sketch 5

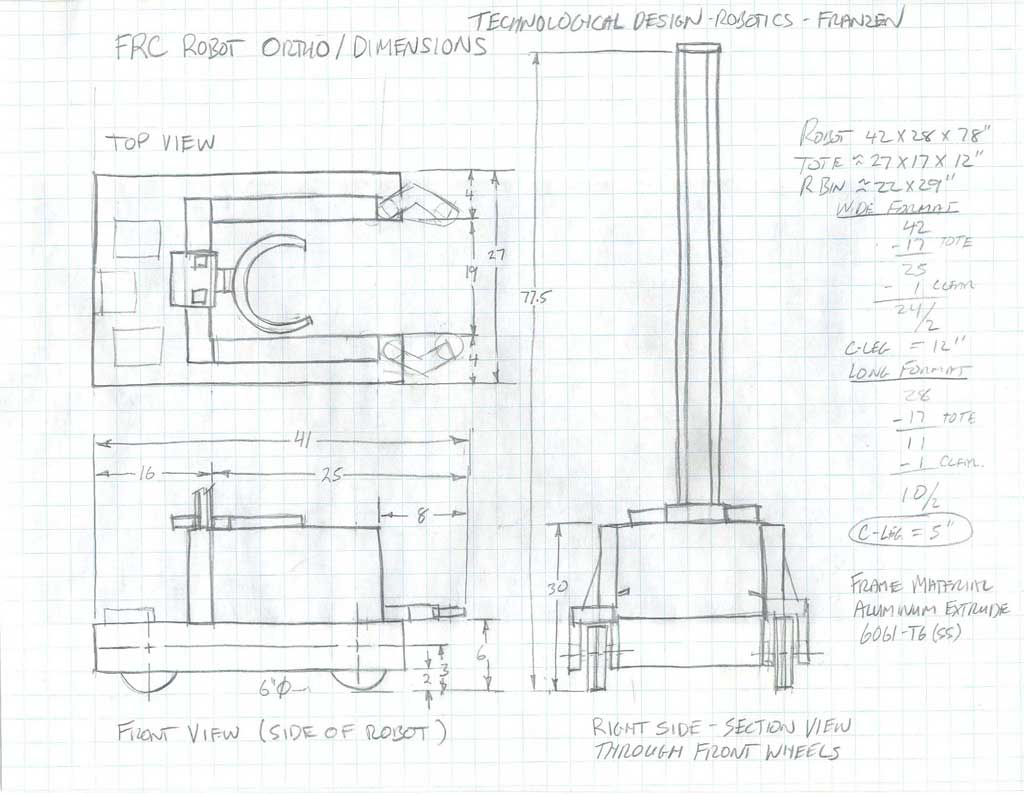

Robot Sketch 6

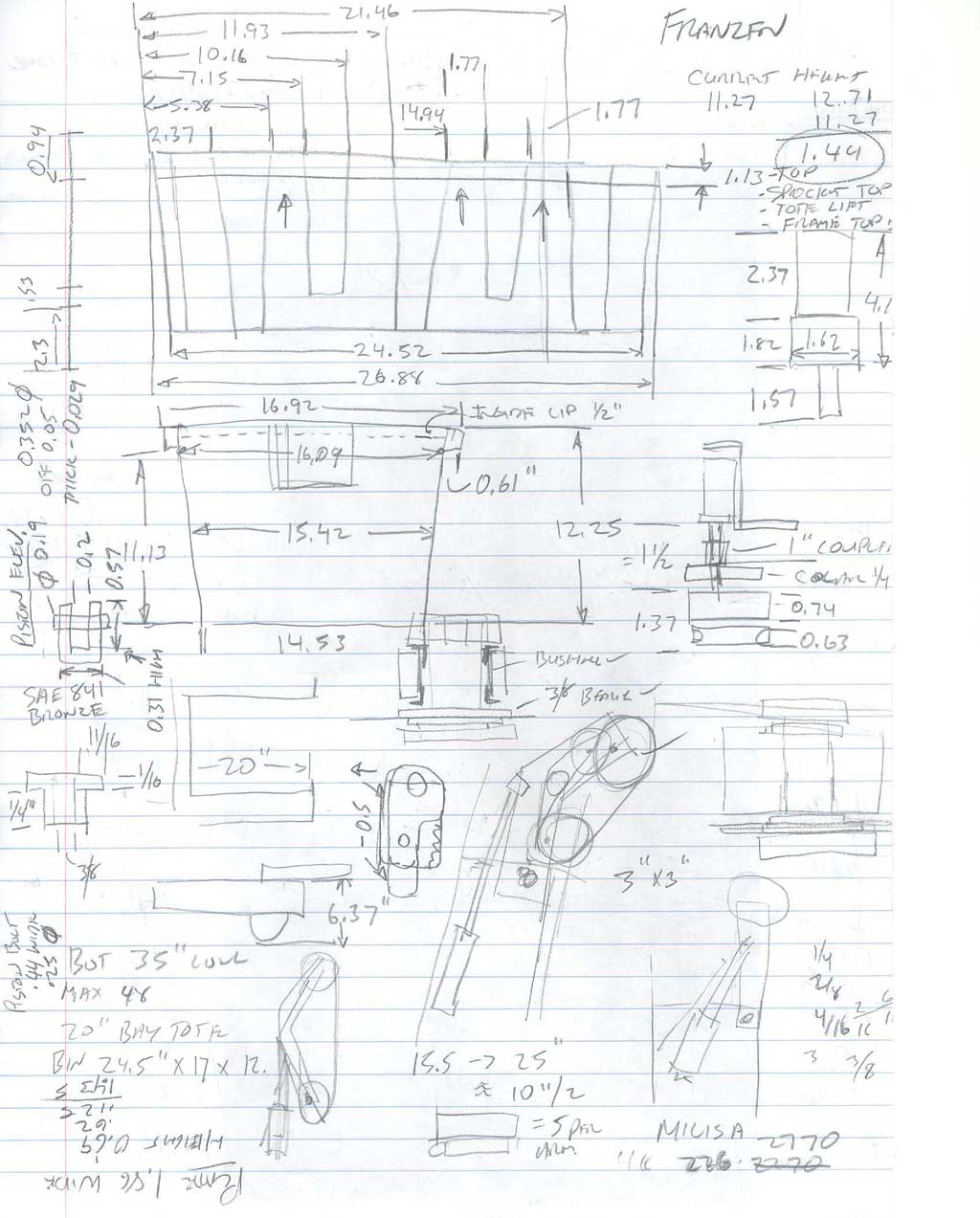

Robot Sketch 7

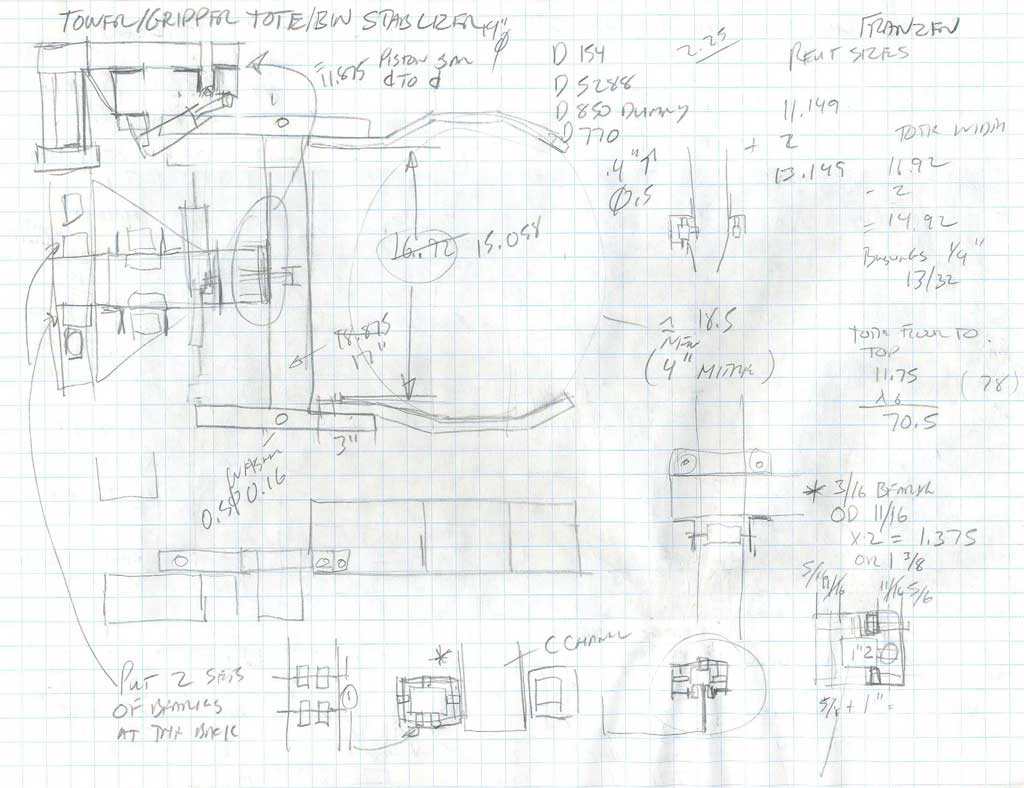

Robot Sketch 8

Robot Sketch 9

Robot Sketch 10





Robot Sketch 11

Robot Sketch 12

Robot Sketch 13

Robot Sketch 14
